DSH-OW/RW/QW/GW/CW Laser Protective Windows

DSH-OW/RW/QW/GW/CW Laser Protective Windows

Typical for 532nm/1064nm/Q-switched laser/630nm/10600nm

0.00
0.00


Typical for 532nm/1064nm/Q-switched laser/630nm/10600nm


                                            Parameters:

                                            One sheet size: L1280mm*W1000mm*δ5mm

                                       MOQ: one sheet of laser safety window, support cut into small pieces according to buyer's required size.

                                       Material: PMMA

                                       OEM: customized size, cutting, drilling, chamfering, marking, and anti-static.

                                       Widely used: laser processing and manufacturing, laser alignment and calibration engineering, laser beauty and medical treatment etc.




Model

Product Picture

Optical Density

VLTApplication

OW

OD6+@190-229nm

OD5+@230-532nm

OD4+@533-338nm


35%

UV, blue light,

green light, 532nm

RW

OD5+@190-248nm

OD4+@249-372nm

OD3+@613-710nm

35%

Red light, 630nm

laser, 660nm laser

QW


OD6+@190-446nm

OD5+@447-468nm

OD4+@467-473nm

OD4+@515-534nm

OD4+@925-1004nm

OD5+@1005-1819nm

OD4+@1820-2000nm


25%

Optical fiber, infrared,

laser welding,

laser cutting,

laser cleaning,

q-switched

laser wavelength

protection

GW-

35%

(SOLD)

OD7+@190-400nm

OD6+@400-410nm

OD5+@410-425nm

OD4+@425-450nm

OD4+@900-930nm

OD5+@930-960nm

OD6+@960-1185nm

OD5+@1185-1200nm

35%

Optical fiber,

infrared,

1064nm,

laser welding,

laser cutting,

laser cleaning

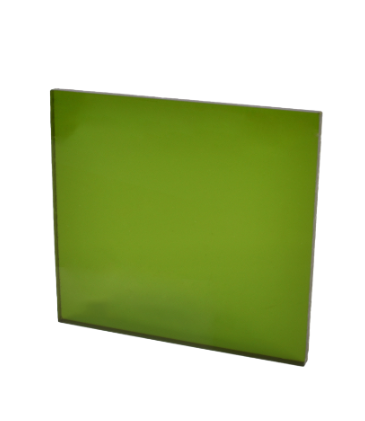

GW-

40%

OD5+@190-400nm

OD6+@401-458nm

OD4+@459-471nm

OD4+@816-844nm

OD5+@845-891nm

OD6+~7+@892-1088nm

OD5+@1089-1717nm

OD4+@1718-1757nm


40%

Optical fiber,

infrared,

1064nm, 1319nm,

1540nm

GW-

60%


OD6+@190-236nm

OD5+@237-420nm

OD4+@820-856nm

OD5+@857-914nm

OD6+@915-1053nm

OD5+@1054-1064nm

OD4+@1065-1076nm


60%

Optical fiber,

infrared,

1064nm, occasions

requiring bright

vision

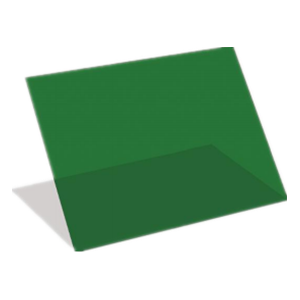

FW








OD6+@190-382nm

OD4+@855-896nm

OD5+@897-950nm

OD6~8+@951-2000nm

25%

UV, Fiber Optic,

Infrared

1064nm Laser

Welding,

Laser Cladding,

Laser Cutting,

Laser Cleaning

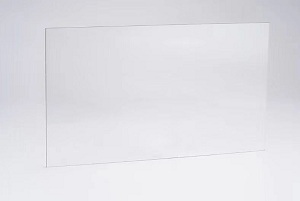

CW
OD6+@10600nm75%CO2 laser 10600nm
CW-2
OD6+@10600nm90%CO2 laser 10600nm

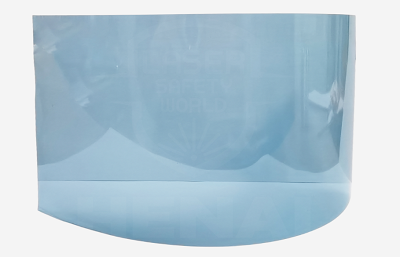

PF

Safety

Film





OD2~5+ @

190-360&900-3000nm

50%

UV Fiber IR 1064nm

1319nm 1550nm

2100nm 2780nm

2940nm
